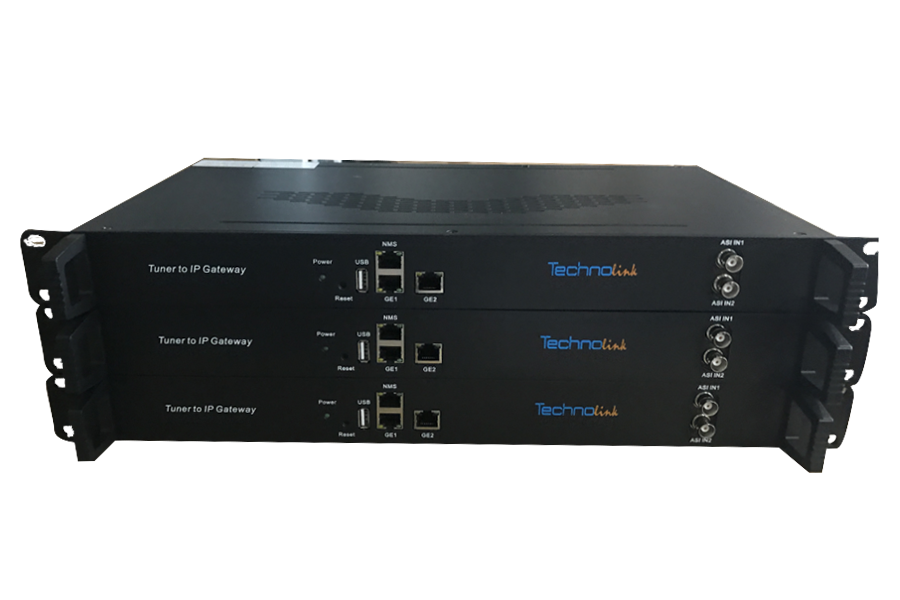

IRD DVB-S/S2 Tuner to IP Gateway

IRD1518 DVB-S/S2

Description

Technolink IRD1518 DVB-S/S2 Tuner to IP Gateway is a head-end interface conversion device and Routes
Any or All Transport Streams via IP Output Port by SPTS/MPTS channels. It supports 16 MPTS or
512 SPTS output over UDP and RTP/RTSP protocol. It is integrated with tuner demodulation (or
ASI input) and gateway function, which can demodulate the signal from 16 tuners into IP package,
or directly convert the TS from ASI input and tuner into IP package, then output the IP package
through different IP address and ports. BISS function is also embedded for tuner input to
descramble your tuner input programs.
IRD1518 enables an all-IP headend architecture, resulting in a more scalable and lower-cost
transition to IP-based services. It will be a ideal equipment for the IPTV network head and deliver
the MPTS/SPTS channels to next equipment which save the cost in your investment.

Features:

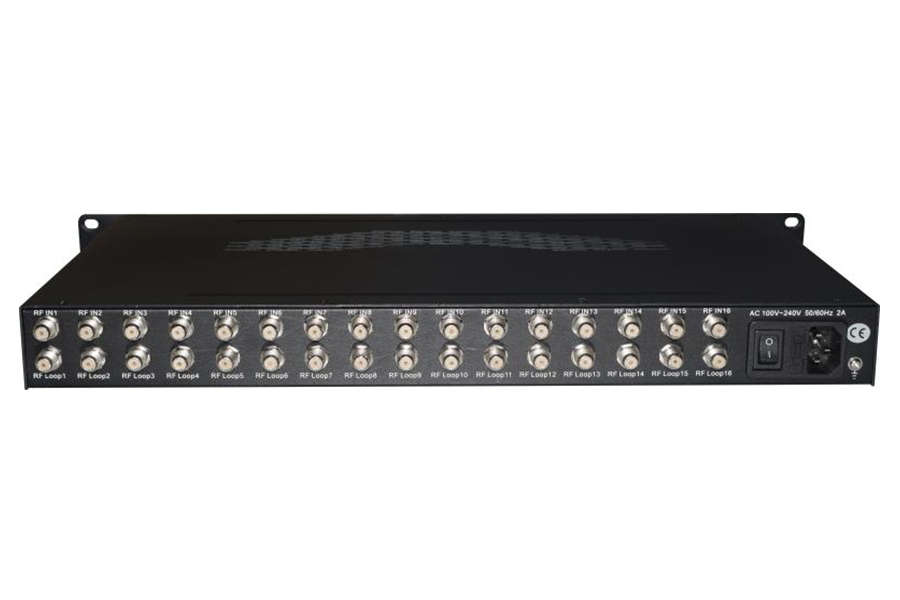

 16 FTA DVB-S/S2 input, 2 ASI input
 BISS descrambling; DisEqc function
 16 MPTS or 512 SPTS output (MPTS and SPTS output switchable)
 2 GE mirrored output, up to 850Mbps—SPTS
 2 independent GE output port, GE1 + GE2—MPTS
 accurate PCR adjusting (Only for SPTS output)
 PID filtering, re-mapping (Only SPTS output)
 PSI/SI rebuilding and editing (Only SPTS output)
 Easy-to-Use System Management
 “Null PKT Filter” function (For MPTS output)
 Management via WEB and local front panel
 Integrated, compact 1-RU platform saves rack space and reduces operating costs

Specifications

Input
Optional 1: 16 DVB-S/S2 tuners input +2 ASI input; 512 SPTS output
Optional 2: 14 DVB-S/S2 tuners input +2 ASI input; 16 MPTS output
Optional 3: 16 DVB-S/S2 tuners input; 16 MPTS output
Output
512 SPTS IP mirrored output over UDP and RTP/RTSP protocol through
GE1 and GE2 port, Unicast and Multicast
16 MPTS IP output (for Tuner passthrough) over UDP and RTP/RTSP
protocol through GE1 and GE2 port, Unicast and Multicast
Tuner Section (DVB-S/S2)
Input Frequency 950-2150MHz
Symbol rate
QPSK 2~45Mbauds;
QPSK 1~45Mbauds,
8PSK 2~30Mbauds
Code rate 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
Constellation QPSK, 8PSK
BISS descrambling
Mode 1, Mode E (Up to 850Mbps) (descramble individual program)
Environment
Dimension(W×L×H) 482mm×410mm×44mm
Approx weight 3.6kg
Temperature 0~45℃(work); -20~80℃(Storage)
Power
requirements
100~240VAC, 50/60Hz
Power
consumption
20W
