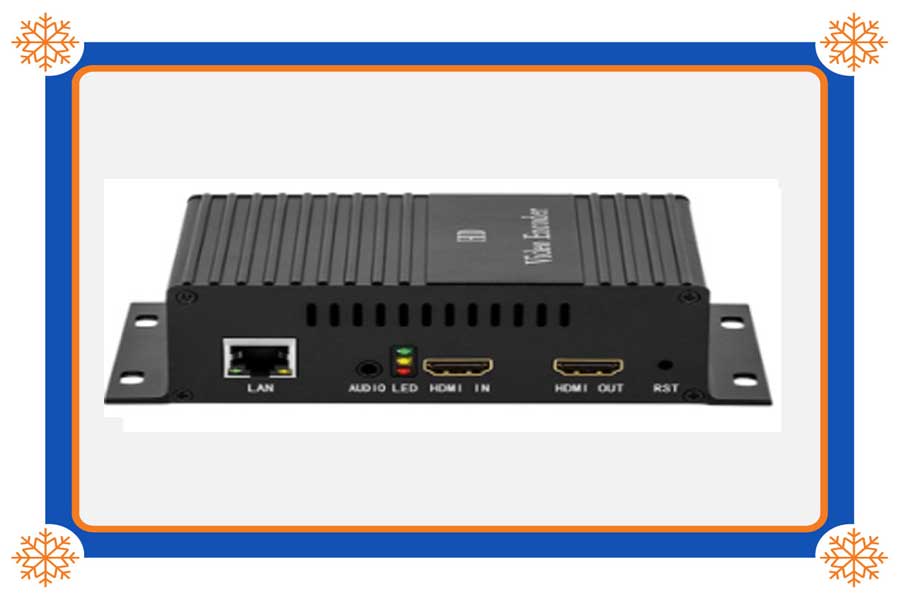

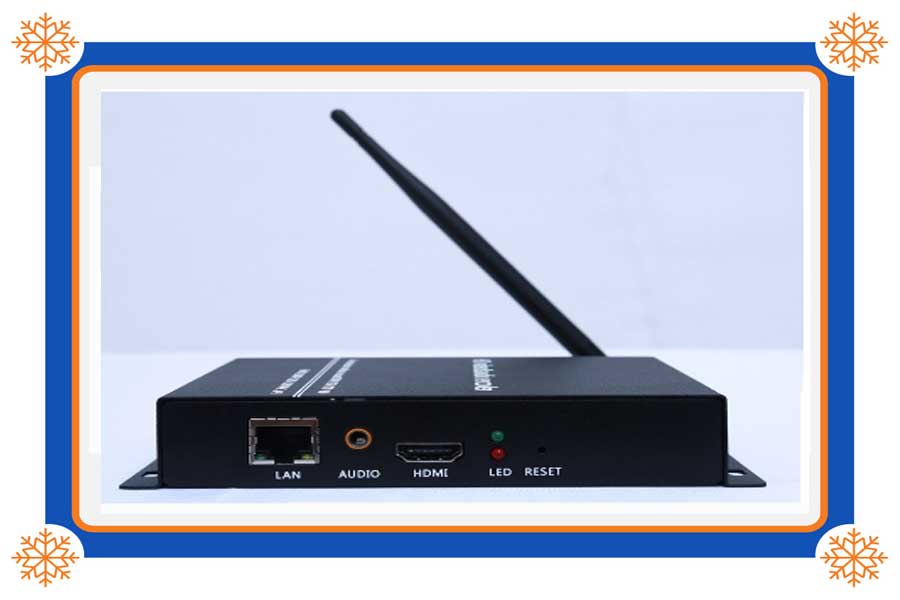

IPTV Encoder T22P/T22W/T23N (with built-in chargeable battery)- features high performance, low latency and low bit rates for IPTV/OTT systems, realized Video & Audio real-time transmission via internet, and adopts state-of-the-art compression technology of H.264/AVC, H.265/HEVC which realizes its resolution to be up to 1080P. With powerful video per-compression and efficient adaptive video compression algorithm, it is able to provide clear-delicate, high quality video even at lower bit rate which can efficiently save the cost of bandwidth.
FEATURES
- Support 1 channel HDMI(HDCP supported)/SDI(optional)/VGA(optional) input
- Support up to 4 TS over IP stream out.
- Resolution up to 720P,1080P(60fps) HD Video INPUT
- Support H.265 High Efficiency VideoCoding (HEVC)/H.264 High Profile
- Bitrate mode: CBR/VBR
- Capable of image parameter settings
- Switchable of audio output mode: Left, right and Stereo
- Configurable of Multi-rate, Multi-resolution, Multi-protocol
- Providing RTSP/HTTP/UDP or RTMP protocol
- Support HDCP protocol, support Blu-RAY
- Support multiple equipments display at the same time on a computer
- Web-based management
- Full-duplex mode 1000M
Specifications
Specifications
VIDEO SPECIFICATIONS
- Video compression:H.265 HEVC, 264/ MPEG-4 AVC High Profile Level 4.0
- Video inputs: HDMI(HDCP supported) or SDI or VGA for option.
- Resolution:
Main stream(supports two protocols): 1920*1080, 1600*900, 1440*1050, 1440*900, 1360*768, 1280*720,1280*800, 1280*768, 1024*576, 960*540,850*480,800*600,720*576,720*480, 720*404,704*576,640*480,640*360, auto
Sub-stream(supports two protocols): 1280*720, 1280*800, 1280*768, 1024*576,960*540,850*480,800*600,720*576, 720*480,720*404,704*576,640*480,640*360, auto
- Bit-rate: 16kbps~12Mbps, CBR/VBR/ABR
- Frame rate:5~60
- Video per-processing: Noise reduction, Sharpen, Filtering
AUDIO SPECIFICATIONS
- Audio compression: AAC
- Sampling rate: Adaptive, select-able of re-sample.
- Sampling accuracy: 24-bit
- Bit Rate: 48000,64000,96000,128000,160000,192000,256000
- Re-sample: 32000,44100
IP output
- Transport protocol: TS over IP output, RTSP/HTTP/UDP or RTMP protocol
- For HDMI/SDI to IP output
4*TS over IP stream out(HTTP/RTSP/UDP or RTMP protocol) 2 Channels with higher resolution(up to 1080P) for large screen application, 2 channels with lower resolution(up to 720P) for small screen application)
- Support RTMP User name and Pass word for authentication of IPTV Server
- Connector: RJ45, 1000M(GigE)
SYSTEM
- Configuration Interface: Web-based
- Upgraded: via network
- Connector: RJ45, 1000M Ethernet interface.
PHYSICAL and POWER
- Voltage: 12V DC
- Consumption: 5W
- Operating temperature: 0~50°C
- Dimensions: 165mm(W)*85 mm(D)*24 mm(H)
- Weight: 0.8kg(including accessories)
