Fiber Splicer

Fiber Splicer Ai-7

Categories: , Tags: ,

Description

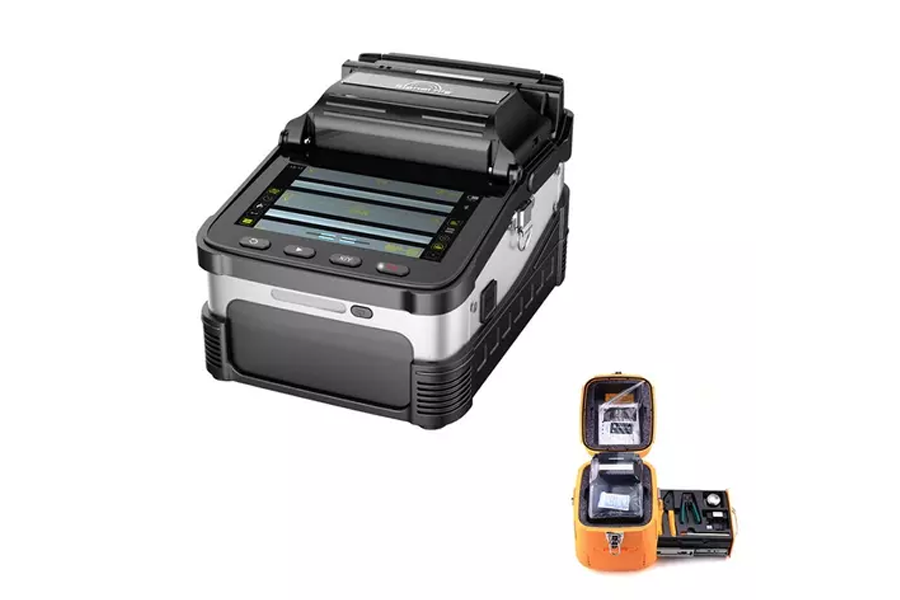

Signalfire AI-7 is an optical fiber fusion splicer with the latest core alignment technology with auto focus and six motors. The device is equipped with an industrial quad-core CPU and a large color screen. Screen brightness can be adjusted for ease of use under intense sunlight. AI-7 has an intuitive interface with up to 300 times focus magnifications, which simplifies observation of the welding process.

Splicing time 8 s, heating time 18 s. Large capacity lithium battery, a fully charged state can splice & heat 240 fibers, also the splicer machine can charge the phone. Signalfire AI-7 has compact and exquisite design, solid body and light weight. Built-in lighting system guarantees the comfort of use during the night construction or repair.

The core parts are made of high quality materials: the stepping motor is manufactured by Siemens (Germany), the linear guides are Roth ROUST (Germany), the body is made of aviation metal, and the lithium battery is manufactured by Sanyo (Japan).

The combination of advanced technology and design ensures reliability, efficiency and convenience.

Features

  • Core alignment technology.
  • Six motors.
  • Quad-core CPU.
  • Large color screen.
  • 300 times focus magnifications.
  • Splicing time 8 s, heating time 18 s.
  • A fully charged state can splice & heat 240 fibers.
  • Compact design and high-quality materials.

Specifications

Comparative specifications

ModelSignalfire AI-9Signalfire AI-8Signalfire AI-7
Typical Splicing Time5 s6 s8 s
Typical Heating Time15 s15 s18 s
Applicable FibersSM (G.652&G.657), MM (G.651), DS (G.657), NZDS (G.655)
Splice LossSM: 0.025 dB, MM: 0.01 dB, DS/NZDS: 0.04 dB
Focus Modeautofocus
Fiber Alignmentcore/cladding alignment; manual alignment
Control Technologyreal-time control and calibration of fusion ARC
Return Loss>> 60 dB
Fiber Diametercladding diameter 80-150 μm; coating diameter 100-1000 μm
Fiber Cleave Length8 ~ 16 mm (coverage up to 250-1000 μm)
Heat Shrinkable Tube60 mm, 40 mm
Tension Teststandard 2N
Fiber Holdersmulti function holders
Display5.1 inch TFT color display
Software Upgrademobile APP update, turn on Bluetooth sync to the machine
Splicing Modenormal / high precision splicing
Splicing Record Storagesynchronize to the phone, the server to cloud storage unlimited
Built-in Battery7800 mA high-capacity lithium battery, charging time ≥ 3.5 hours
Power Supplyinput AC100-240 V 50 / 60 HZ, output DC13.5 V / 4 A
Operating Conditionstemperature -15 ~ +50 ℃
humidity <95%
working altitude: 0 ~ 5000 m
max. wind speed: ≤ 15 m/s

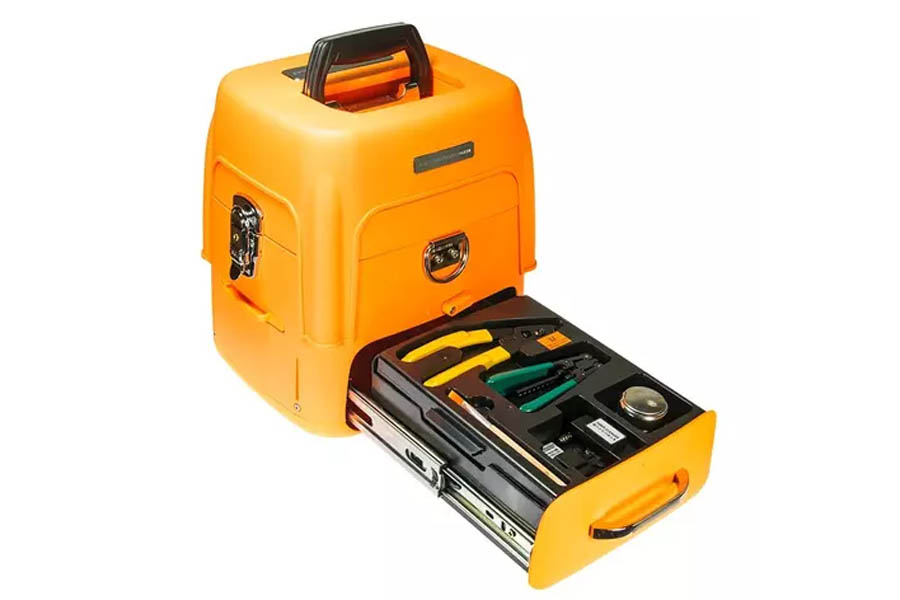

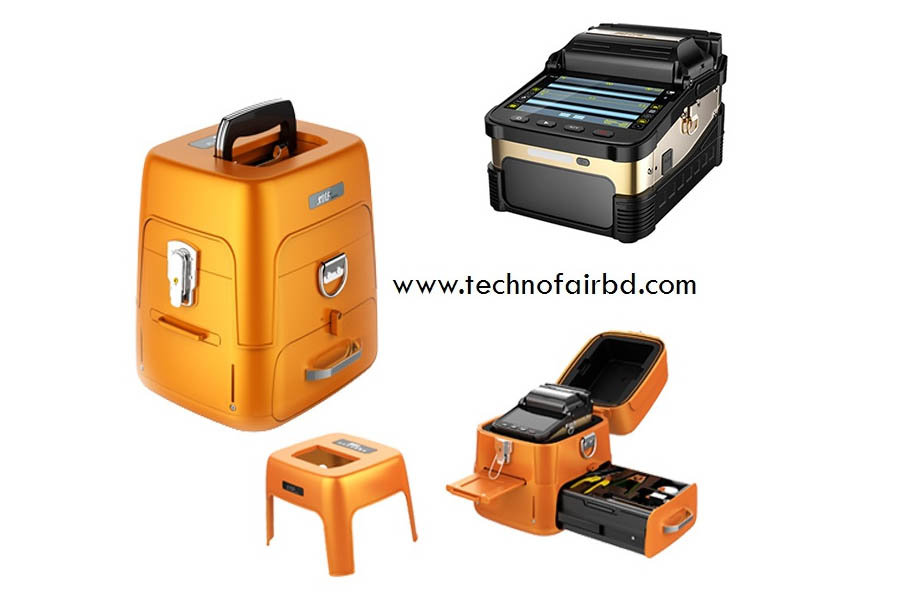

Package Contents

  • Fusion Splicer Kit Signalfire AI-7 — 1 pc.
  • FTTH Stripping Tool — 1 pc.
  • Fusion Splicer Carrying Strap — 1 pc.
  • Toolbox Carrying Strap — 1 pc.
  • Fiber Optic Stripper — 1 pc.
  • Alcohol Bottle — 1 pc.
  • Spare Electrodes — 1 set.
  • Brush — 1 pc.
  • Fiber Cleaver — 1 pc.
  • Power Cord — 1 pc.
  • Stool — 1 pc.
